| ATEX Zulassung Staub | with manufacturer certificate |
|---|---|
| Gehäusematerial | Stainless steel VA No. 1.4305 (AISI 303) |
| ATEX Zulassung Gas | with manufacturer certificate |
| ATEX Produktkennzeichnung Staub | Ex II 3D Ex mc IIIC T101°C Dc IP67 X |
| ATEX Produktkennzeichnung Gas | Ex II 3G Ex nA IIC T6 Gc X |
| Ausgangsfunktion | PNP, Antivalent |
| Einbauart | Non-flush mountable |
| Anschluss | Female connector M 12 x 1 (A coded, 4 - pole) |
| Leerlaufstrom (Iₒ) | Typ. 15 mA |
| LED-Anzeige | Green / yellow |

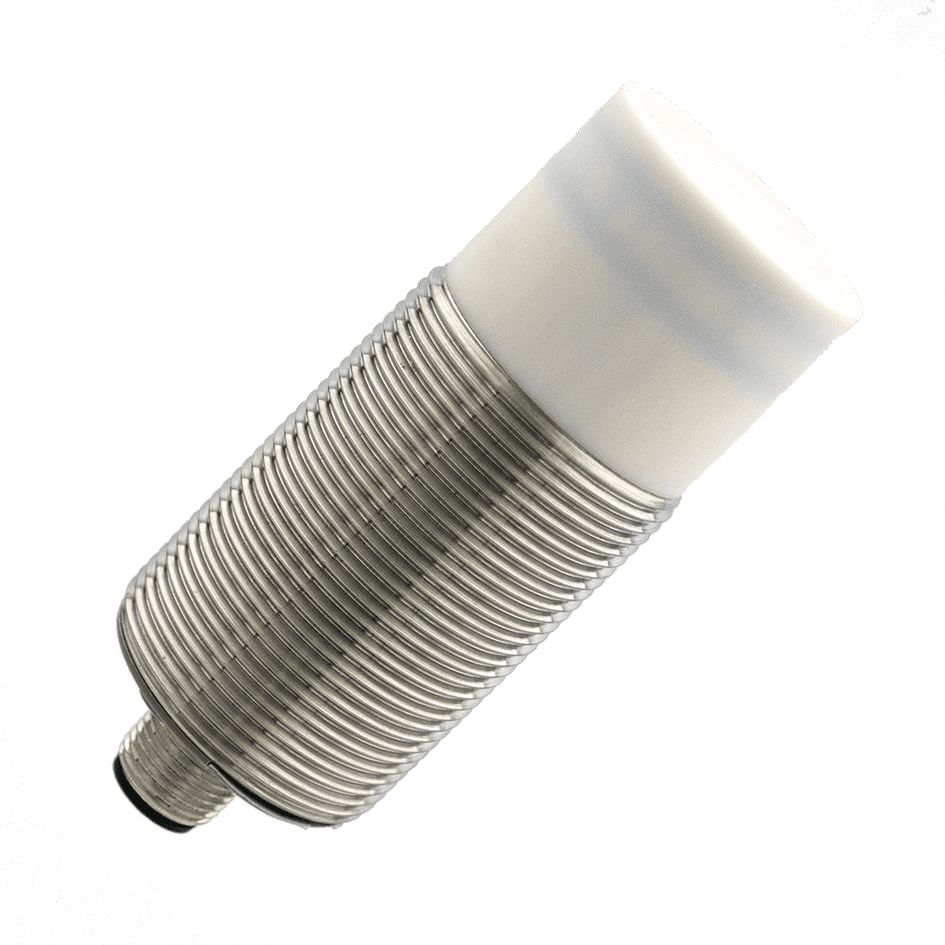

KAS-80-35-A-M32-PTFE/VAb-Y5-1-HP-3G-3D
Data sheet: Download PDF3D-Zeichnung: Download PDF
3D-Zeichnung: STP herunterladen
